Urgent: How to connect my turbo cooling?

Problem or technical question?
Post a reply

Urgent: How to connect my turbo cooling?

Postby disc on Sat Apr 01, 2006 9:40 pm

Hi!

Since my CFi to CFi turbo project is near to final state I need to know how to connect water cooling for my S2 ERST T3 turbo unit. Here is my current water cooling system - 1,4 CFI:



After some discussion with a friend we find a solution (may be!)
Here is our drawing - 1,4 EFi Turbo with water cooled turbocharger:



Please, anyone can confirm our drawing? I need it for tommorow :rolleyes:

Here is a blank image for some drawings if you want to.

Sorry for my bad english...
disc
Senior Poster
Senior Poster

Posts: 239
Joined: Fri Feb 06, 2004 8:03 pm
Location: Bulgaria
Your car: 1991 Orion ZetecTurbo 270BHP
Top

Postby ianFRST on Sat Apr 01, 2006 10:04 pm

on the rs turbo, the water return goes to the radiator, dunno if that helps :-?
No longer a FRST owner, or even a Fiesta owner :(
ianFRST
Elite Post Master
Elite Post Master

Posts: 12982
Joined: Mon Dec 30, 2002 9:32 pm
Location: Burton on Trent
Top

Postby disc on Sat Apr 01, 2006 10:16 pm

Do you mean:

"water comes from the radiator" ?

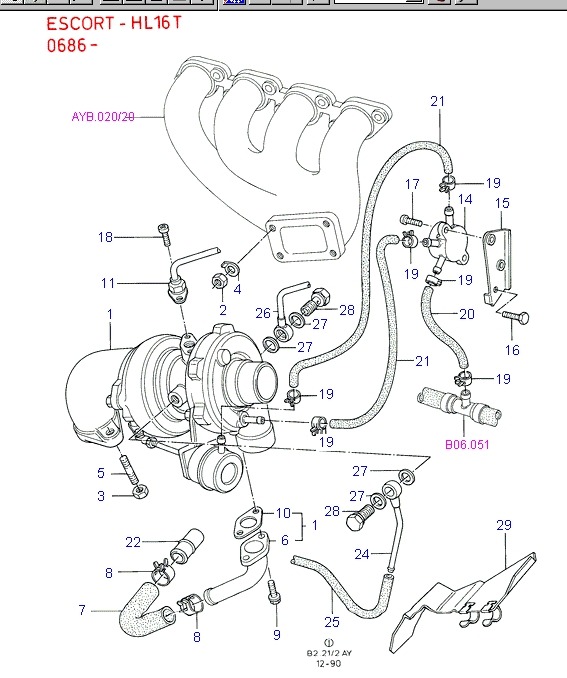

Because in Microcat that little metal pipe on water cooled turbo connected to radiator (24) is called "TUBE - WATER INLET, CVH 1,6 TURBO", and the other that goes to top radiator hose (26) - "TUBE - WATER OUTLET" ?!? :rolleyes:

Sorry for my bad english...
disc
Senior Poster
Senior Poster

Posts: 239
Joined: Fri Feb 06, 2004 8:03 pm
Location: Bulgaria
Your car: 1991 Orion ZetecTurbo 270BHP
Top

Postby j7aoc on Sun Apr 02, 2006 12:22 am

Image :D :aviator: :D
j7aoc
Elite Post Master
Elite Post Master
User avatar
Posts: 6194
Joined: Mon Feb 28, 2005 6:52 pm
Location: southampton

Car: 1991 Ford Fiesta RS Turbo
Top

Postby ianFRST on Sun Apr 02, 2006 8:07 am

j7aoc :Image :D :aviator: :D


yup thats easier to quote than explain. the long red one is the water feed (from the top radiator hose), the shorter one is the return to the side of the radiator
No longer a FRST owner, or even a Fiesta owner :(
ianFRST
Elite Post Master
Elite Post Master

Posts: 12982
Joined: Mon Dec 30, 2002 9:32 pm
Location: Burton on Trent
Top

Postby mk2turbo on Sun Apr 02, 2006 1:55 pm

ok just a quick one,
ya see the hose coming from the rad to the turbo, (pretty sure it's the supply line, convection and all that. . . ), is that a single bore hose or does it get larger at the rad?
The connection on my rad is too big to get a hose on it which also securely fits onto the turbo solid pipe. Have I got the wrong rad?
when i got the car it didn't have the water cooling connected!
Look, I've got a MK2.
I quite happen to like it.
OK?
mk2turbo
Newbie Poster
Newbie Poster

Posts: 20
Joined: Mon Feb 13, 2006 6:03 pm
Location: W.midlands
Top

Postby j7aoc on Sun Apr 02, 2006 7:10 pm

The fiesta turbo rad has a little spout that the hose pushes on to from the the turbo but some people do a xr2i convert to help with the cooling as the rad's are bigger and some people don't have the turbo water cooled as this make's the car run hotter
j7aoc
Elite Post Master
Elite Post Master
User avatar
Posts: 6194
Joined: Mon Feb 28, 2005 6:52 pm
Location: southampton

Car: 1991 Ford Fiesta RS Turbo
Top

Postby FedeArg on Sun Apr 02, 2006 8:52 pm

ianFRST :
j7aoc :Image :D :aviator: :D


yup thats easier to quote than explain. the long red one is the water feed (from the top radiator hose), the shorter one is the return to the side of the radiator


Ian, I just have one question. Is it logical that the the water feed for the turbo is the hot water that goes from the engine to the radiator?? I thought that the turbo was fed with the colder water comming from the radiator.

Regards

Fede
Fahr nicht schneller als dein Schutzengel fliegen kann
FedeArg
Senior Poster
Senior Poster

Posts: 255
Joined: Sat May 15, 2004 5:30 am
Location: Buenos Aires
