This is a quick guide how i fitted my one touch relay (5 Pin from a MK2 Mondeo)

First you'll need a one touch relay from a mk2 mondeo along with a length of loom got mine from a local scrap yard for £5

I am doing the guide by pin number rather than colour as I dont know if all mondeo relays have the same colours but in case they are:

Mondeo
Pin 1: Black
Pin 2: Green/Orange
Pin 3: White/Green
Pin 4: Grey/Orange
Pin 5: Yellow

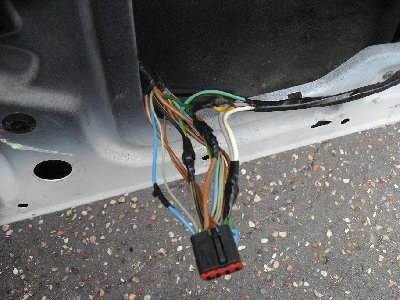

First connect the mondeo wires to the fiesta loom (drivers switch has the black plug as shown)
Solder the conections dont use those bloody conecctor blocks
Pin 1 ------> Splice to the large Brown wire
Pin 2 ------>Splice to the Black/Yellow
Pin 3 & 4 -->Cut Green wire and connect to the switch side
Pin 5 ------>Connect to the other side of the Green wire

NOTE: If doing it for the passangers switch (blue plug) cut the Green/Yellow wire.

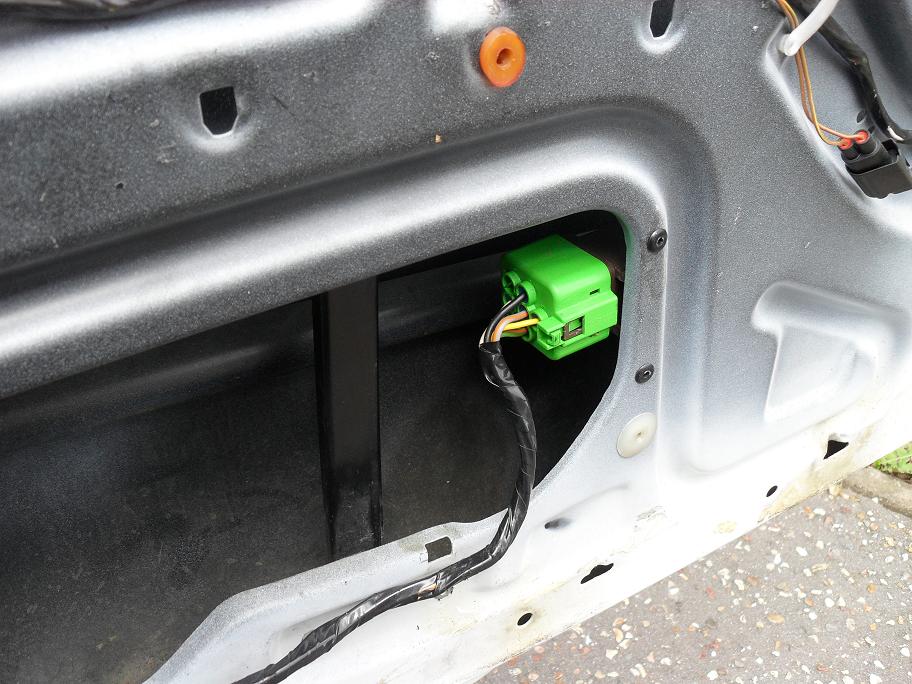

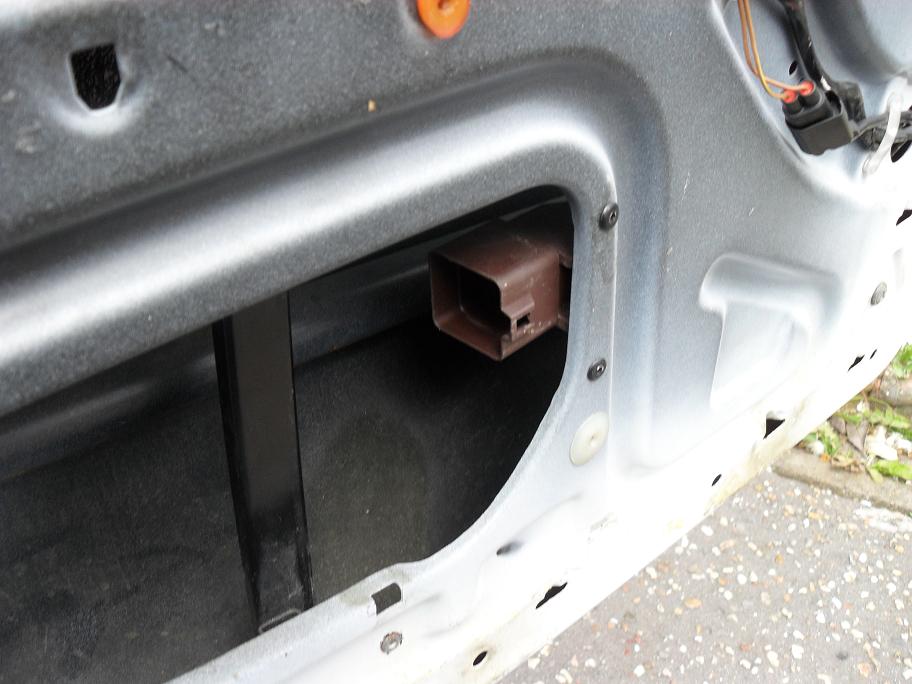

Next mount the relay in a place where it wont hit the window mech. as shown above.

Next connect the loom to the relay and your done refit your door card etc and enjoy:)

[jayrs]

nice little simple guide mate.
have thought about doing this to my RS but never got round to looking into it, but now i got more time on my hands may just well get on and do it.

wheres the relay on the mondeo? in the drivers door i take it?

[allinking]

Yes in the drivers door huge brown relay cant miss it

[jayrs]

cool.
will have to er, buy some when im next down there
will; see if i can get anymore if anyone else needs them, if not ill stick what i get in stock

[- Danny Boy -]

I have a couple of these laying around, only seen the 4 pin guide before - in earlier mondeos i think the 4 pin ones was. Might give this a go next weekend :)

[allinking]

[quote="- Danny Boy -"]I have a couple of these laying around, only seen the 4 pin guide before - in earlier mondeos i think the 4 pin ones was. Might give this a go next weekend :)[/quote]

As far as i remeber on the "4 pin ones" you only conect 1 of the 2 wires to the green wire from pin 3 or 4 and the "5 pin" you connect pin 3 and 4 :)

[jonyb4]

Hi, just got myself one of these on ebay, awaiting delivery now

just a quicky Q and A

does the single relay provide both one touch up and down per window?

Thanks Jon

[allinking]

No its just one touch down not designed for one touch up due to safty reasons as there is no load sensor on the motor so could chop small fingers off lol :)

[jonyb4]

i honestly think thats crap lol

i probably wouldnt have bothered buying one if i knew this before hand :(

if there not a way to wire both up and down to the same relay?

[knuckles]

[quote="jonyb4"]i honestly think thats crap lol

i probably wouldnt have bothered buying one if i knew this before hand :(

if there not a way to wire both up and down to the same relay?[/quote]

did the safety aspect of the previous post not make any sense ?

[jonyb4]

well if the driver is stupid enough to trap his own hand in the window he shouldnt be able to wire something like this up

on the other hand its a useful trap to keep hijackers from nicking your keys haha

[dontpannic]

Jon... if there was a way of using one relay for one touch up and down why would I have purchased a relay for each direction? I've told you, as have various other people that you need a relay per direction.

They aren't that expensive either, grab them from a scrappy or search on ebay

http://cgi.ebay.co.uk/Ford-Focus-MK1-Wi ... _941wt_936
http://cgi.ebay.co.uk/Ford-Mondeo-Focus ... _500wt_717

[jonyb4]

yes because thats what everyone wants l;ol

a ton of massive relays stacked up in theyre door :(

[dontpannic]

They aren't heavy and behind the door card you don't see them. As long as the connections are solid and insulated there's no problem :)

[Rhinopower]

They aren't heavy and behind the door card you don't see them. As long as the connections are solid and insulated there's no problem

You getting that banging your head against a brick wall feeling too?

[dontpannic]

[quote="Rhinopower"][quote="dontpannic"]They aren't heavy and behind the door card you don't see them. As long as the connections are solid and insulated there's no problem :)[/quote]

You getting that banging your head against a brick wall feeling too?[/quote]

*nods*

[jonyb4]

aint you all about the fudgekin jokes...

picked up another one today, dont know whether to use it for the passengers window from my side, or for my window to go back up

[Rhinopower]

aint you all about the fudgekin jokes...

picked up another one today, dont know whether to use it for the passengers window from my side, or for my window to go back up

Nick aint all about the jokes, he does some serious car modifying and wheel changing

[jonyb4]

:rolleyes:

[DanFraser]

So what is the additional pin for? Doesn't make sense to have two pins go to the same place. Ford do some weird things sometimes but they're not that weird! Anyone seen a Haynes with the layout?

[dontpannic]

The 4 pin relay works as follows:

Press switch down to move window down, press switch again to stop it. There is no incremental control

The 5 pin relay works as follows:

Press switch down and release to move window down. Hold window switch as normal to reach a designated height.

Its got something to do with the two stage switches in the Mondeo/Fiesta/Focus.

[DanFraser]

Ah! Thank you!

[dontpannic]

No probs. My ST has one touch down but on a two stage switch - push down a little for incremental control, fully for one touch. In that though, I believe the relay is in the switch.

[DanFraser]

Just to check my wiring plans which also include electric mirrors, could someone verify this? Just wanting to power the drivers side mirror so far. The plan is a 4 pin to one touch up and a 5 pin for the better control for down. I'm wiring in a one touch up as I shouldn't be stupid enough to trap myself, if I was that stupid I shouldn't be driving!

Ok, here goes.

4 pin for up...

Black to brown on switch
V/o to bk/yellow on switch
Cut blue
Y/green to blue on switch
Y/violet to blue on wire

Different colours, but the pin numbers appear to be the same and the Haynes manual confirms it.

5 pin for down

As per above

E/M drivers side power only for the time being:

Red to bk/yellow on e/w switch
brown to brown on e/w switch

Obviously this power the control switch which is wired to the mirror.

Look right?

[andymac]

Also, on the four wire relay it's possible to mod it to cut out on a lower threshold. See :

http://www.clickdesign.co.uk/supradupra ... indow.html

This may address safety concerns re fingers etc. I'd like to do some testing with a 10k pot and see what sort of setting is needed to cut out the window with someone trying to hold on to it.

[Rs Adz]

am going to have to try this thanks for the guide
