How to make: Camber Adjustable Lower Arms.
*** Can a mod move this to the guides section? I can't post it in there. Thanks! ***
This is just a brief guide to making camber adjustable lower arms.
Your lower arms may vary in looks as I have the latter mk3.5/ka arms which are stronger than the twin skin ones you normally see.
I do not hold any responsibility for any deaths or crashed cars caused by copying this guide, because if you do it wrong, it's your own fault
It's not a full in depth guide, just a brief one as I didn't take pictues at every stage.
The main things will need:
- A pair of lower arms.
- Angle grinder.
- A round file, and perhaps a flat one.
- Fine tipped marker pen/pencil.
- A ruler. You can use a tape measure but it's not as good in my opinion.
- Sand paper to rub out any mistakes if you draw the lines in marker pen.
- Vice or G clamp.
- Energy drinks - not essential. Replace with whatever drinks you wish
First things first, get your lower arms and angle grinder out. You will want to be grinding the heads of the rivets off.
You will be left with something looking like this:
Then get a hammer or something, an tap out the ball joint.
Then, you need to make some measurements, to be 100% sure the lower arms are perfectly shaped and the holes are in the right place. Not doing so could result in wonky lines drawn later, and holes which are offset.
The diagram below is for illustration purposes only. What you need to measure is from the YELLOW straight edge, to the centre of the hole on each side, on each hole.
So do your first one, then do the same on the next hole. All distances SHOULD be the same. If they are not, this means either the straight edge isn't truely straight. OR the holes might have been stamped/drilled at a slight angle possibly. I would think its rare for the holes to be in the wrong place though!!
Then measure from the centre of the bottom of the hole, to the yellow line. Again, these distances should be the same. You don't need to do this, but it will rule out any mistakes you might have made measuring to the centre of the hole/confirm the edge isn't straight.
If the distances are different, you'll probably want to make them all the same by filing down the straight edge until those distances are the same. The reason you want it all to be perfect and even is because you will end up with wonky lines when you draw them later and then probably have wonky holes.
Does that make sense? I hope so. I know what I mean
Right, then you need to get the rivets out the ball joint. I used a hammer and an old bar which is my beating bar, placed the ball joint on a surface with a hole and whacked them out.
Then you are left with two lower arms and ball joints ready to go!
Now, on this part, you don't need to clamp the ball joint in place, but I did because I couldn't hold the camera, pencil and lower arm + ball joint all at once.
You want to place the ball joint where it would normally be, then slide it down until it stops. Then use a pencil or pen to mark the inside of the hole on the lower arm and ball joint.
Then measure the marking. Mine was 4mm. I filed the holes to 5mm though, just to give myself that tiny bit extra just in case.
This is where the straight edge comes into play... Get your ruler, make sure it's parallel to the edge, then start drawing your lines.
Then measure at the top and at the bottom of the lines to make sure the distances are the same. If they are, good job. If they aren't. Do it again! Then do the other side.
Then measure 5mm from the top of the hole (or however many mm's your distance is) on each hole, then draw a straight line across both marks.
At this point you can be anal if you want and measure from the line you just drew to the edge, it should all be the same distance
Also it's worth noting, you might want to put a line down the middle as a filing guide line. And also, I got a bit pen happy and made some lines on the rear hole. DONT DO THAT! You will not be filing that hole. Well, you can if you want to, but I am not, and other professional lower arms sets have the two front holes filed and the rear ball joint hole filed, like what I will be doing. So ignore them marks
Then mark 5mm on the single hole of the ball joint, draw up your lines... then it's time to start filing!
Clamp your lower arm into your vice or onto the work bench..../computer workstation in your garage if you have one
Then file up the guide line until you get to the 5mm mark.
Then you can either enlarge that hole or do the next side like I did, for whatever reason.
Then start enlarging the holes. Please note that these holes aren't perfect yet as I will do all that later.
Then do the ball joint hole. Again, not 100% perfect yet. Will do that later. In fact, in this picture it wasn't even big enough for the bolt to slide down the hole, I enlarged it though, don't worry
I then got some old M10 bolts (with no nuts as I didn't have any), placed them in the holes and made sure it all worked. (Video below)
Comparison of before and after.
Then at this point, some cats showed up!
This one was spying on me!
Then he went hunting!
ANYWAY! Do the same with the other lower arm, and you have yourself a pair. Note, after this picture was taken, I made all my final adjustments to the holes, made sure they was all even and had nice flat edges ect.
At this point, you will need to paint them. Hammerite black paint will do. You can use any paint you like though.
You'll need some new nuts, bolts and washers too. I popped down to screwfix and got myself a load of M10 set scews which was 30mm long (you can use 25mm minimum I think), some nylock nuts and some washers.
Then once the paint as dried, assemble them and pop them on the car.
Please note, you MUST get your car tracking and camber laser aligned after you have done this. I know some places allow you to have it done, then you have a certain time to take if back if it's not right and they will check it and adjust it for free. You can take advantage of this by having your car tracked up on the normal lower arms, taking it home, swapping the lower arms over and then take it back to get it re-tracked and also see how many degrees of camber you have shaved off - also making sure both sides are even of course.
If you need even more camber adjustment, you can take off some of the front edge of the lower arm (where the yellow line is on the diagram above) then increase the length of the holes more. Depending how much you take off will give you anywhere between 5-10mm. But do not take off so much of the edge that you are really close to the holes. I would leave roughly 2-3mm minimum. All for a safety point of view.
I hope this guide might be of some use to some people out there!
This is just a brief guide to making camber adjustable lower arms.
Your lower arms may vary in looks as I have the latter mk3.5/ka arms which are stronger than the twin skin ones you normally see.
I do not hold any responsibility for any deaths or crashed cars caused by copying this guide, because if you do it wrong, it's your own fault
It's not a full in depth guide, just a brief one as I didn't take pictues at every stage.
The main things will need:
- A pair of lower arms.
- Angle grinder.
- A round file, and perhaps a flat one.
- Fine tipped marker pen/pencil.
- A ruler. You can use a tape measure but it's not as good in my opinion.
- Sand paper to rub out any mistakes if you draw the lines in marker pen.
- Vice or G clamp.
- Energy drinks - not essential. Replace with whatever drinks you wish
First things first, get your lower arms and angle grinder out. You will want to be grinding the heads of the rivets off.
You will be left with something looking like this:
Then get a hammer or something, an tap out the ball joint.
Then, you need to make some measurements, to be 100% sure the lower arms are perfectly shaped and the holes are in the right place. Not doing so could result in wonky lines drawn later, and holes which are offset.
The diagram below is for illustration purposes only. What you need to measure is from the YELLOW straight edge, to the centre of the hole on each side, on each hole.
So do your first one, then do the same on the next hole. All distances SHOULD be the same. If they are not, this means either the straight edge isn't truely straight. OR the holes might have been stamped/drilled at a slight angle possibly. I would think its rare for the holes to be in the wrong place though!!
Then measure from the centre of the bottom of the hole, to the yellow line. Again, these distances should be the same. You don't need to do this, but it will rule out any mistakes you might have made measuring to the centre of the hole/confirm the edge isn't straight.
If the distances are different, you'll probably want to make them all the same by filing down the straight edge until those distances are the same. The reason you want it all to be perfect and even is because you will end up with wonky lines when you draw them later and then probably have wonky holes.
Does that make sense? I hope so. I know what I mean
Right, then you need to get the rivets out the ball joint. I used a hammer and an old bar which is my beating bar, placed the ball joint on a surface with a hole and whacked them out.
Then you are left with two lower arms and ball joints ready to go!
Now, on this part, you don't need to clamp the ball joint in place, but I did because I couldn't hold the camera, pencil and lower arm + ball joint all at once.
You want to place the ball joint where it would normally be, then slide it down until it stops. Then use a pencil or pen to mark the inside of the hole on the lower arm and ball joint.
Then measure the marking. Mine was 4mm. I filed the holes to 5mm though, just to give myself that tiny bit extra just in case.
This is where the straight edge comes into play... Get your ruler, make sure it's parallel to the edge, then start drawing your lines.
Then measure at the top and at the bottom of the lines to make sure the distances are the same. If they are, good job. If they aren't. Do it again! Then do the other side.
Then measure 5mm from the top of the hole (or however many mm's your distance is) on each hole, then draw a straight line across both marks.
At this point you can be anal if you want and measure from the line you just drew to the edge, it should all be the same distance
Also it's worth noting, you might want to put a line down the middle as a filing guide line. And also, I got a bit pen happy and made some lines on the rear hole. DONT DO THAT! You will not be filing that hole. Well, you can if you want to, but I am not, and other professional lower arms sets have the two front holes filed and the rear ball joint hole filed, like what I will be doing. So ignore them marks
Then mark 5mm on the single hole of the ball joint, draw up your lines... then it's time to start filing!
Clamp your lower arm into your vice or onto the work bench..../computer workstation in your garage if you have one
Then file up the guide line until you get to the 5mm mark.
Then you can either enlarge that hole or do the next side like I did, for whatever reason.
Then start enlarging the holes. Please note that these holes aren't perfect yet as I will do all that later.
Then do the ball joint hole. Again, not 100% perfect yet. Will do that later. In fact, in this picture it wasn't even big enough for the bolt to slide down the hole, I enlarged it though, don't worry
I then got some old M10 bolts (with no nuts as I didn't have any), placed them in the holes and made sure it all worked. (Video below)
Comparison of before and after.
Then at this point, some cats showed up!
This one was spying on me!
Then he went hunting!
ANYWAY! Do the same with the other lower arm, and you have yourself a pair. Note, after this picture was taken, I made all my final adjustments to the holes, made sure they was all even and had nice flat edges ect.
At this point, you will need to paint them. Hammerite black paint will do. You can use any paint you like though.
You'll need some new nuts, bolts and washers too. I popped down to screwfix and got myself a load of M10 set scews which was 30mm long (you can use 25mm minimum I think), some nylock nuts and some washers.
Then once the paint as dried, assemble them and pop them on the car.
Please note, you MUST get your car tracking and camber laser aligned after you have done this. I know some places allow you to have it done, then you have a certain time to take if back if it's not right and they will check it and adjust it for free. You can take advantage of this by having your car tracked up on the normal lower arms, taking it home, swapping the lower arms over and then take it back to get it re-tracked and also see how many degrees of camber you have shaved off - also making sure both sides are even of course.
If you need even more camber adjustment, you can take off some of the front edge of the lower arm (where the yellow line is on the diagram above) then increase the length of the holes more. Depending how much you take off will give you anywhere between 5-10mm. But do not take off so much of the edge that you are really close to the holes. I would leave roughly 2-3mm minimum. All for a safety point of view.
I hope this guide might be of some use to some people out there!
- - Danny Boy -
- Elite Post Master
- Posts: 3844
- Joined: Mon Sep 10, 2007 5:49 pm
- Location: Portsmouth
- Your car: Fiesta Si 2.0
- Gmc
- Elite Post Master
- Posts: 2758
- Joined: Sat Jul 05, 2003 4:43 pm
- Location: Glasgow, Scotland
Car: 1992 Ford Fiesta RS Turbo
Re: How to make: Camber Adjustable Lower Arms.
I didn't even notice it until you quoted it. Amazing!
- - Danny Boy -
- Elite Post Master
- Posts: 3844
- Joined: Mon Sep 10, 2007 5:49 pm
- Location: Portsmouth
- Your car: Fiesta Si 2.0
Re: How to make: Camber Adjustable Lower Arms.
Ahh, 'conquering device' comedy!
- Ratspeed
- Elite Post Master
- Posts: 2787
- Joined: Sat Dec 08, 2007 4:54 pm
- Your car: Mk1 pop plus & Focus ESP
Re: How to make: Camber Adjustable Lower Arms.
- AW3K
- Elite Post Master
- Posts: 2923
- Joined: Sun Apr 29, 2001 1:00 am
- Location: Wakefield, West Yorkshire Guide Master
Re: How to make: Camber Adjustable Lower Arms.
Awesome!

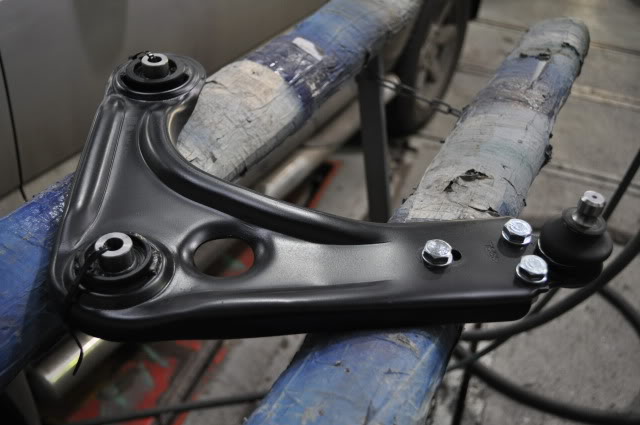

I let the paint dry on these over night and popped to screwfix to get some new nylock nuts, washers and 30mm set screws which give about 5mm of thread poking through I think - from my calculations. You can probably get away with 25mm set screws, but you need to make sure you have at least 2-3 threads past the nylock insert in the nut for safety purposes.

Just a quick picture.
I let the paint dry on these over night and popped to screwfix to get some new nylock nuts, washers and 30mm set screws which give about 5mm of thread poking through I think - from my calculations. You can probably get away with 25mm set screws, but you need to make sure you have at least 2-3 threads past the nylock insert in the nut for safety purposes.
Just a quick picture.
- - Danny Boy -
- Elite Post Master
- Posts: 3844
- Joined: Mon Sep 10, 2007 5:49 pm
- Location: Portsmouth
- Your car: Fiesta Si 2.0
Re: How to make: Camber Adjustable Lower Arms.
moved to guides for ya.
one thing i want to add to this is, anyone who does this, be sure not to go over the top and take too much metal away making the arm unsafe.
one thing i want to add to this is, anyone who does this, be sure not to go over the top and take too much metal away making the arm unsafe.
- jayrs
- Elite Post Master
- Posts: 31520
- Joined: Mon Apr 19, 2004 10:32 pm
- Location: I.O.W
- Your car: FRST, XR2, ST170, ST225
Car: 1991 Ford Fiesta RS Turbo
Re: How to make: Camber Adjustable Lower Arms.
Cheers Jay! :)
- - Danny Boy -
- Elite Post Master
- Posts: 3844
- Joined: Mon Sep 10, 2007 5:49 pm
- Location: Portsmouth
- Your car: Fiesta Si 2.0
Re: How to make: Camber Adjustable Lower Arms.
no worries dude, was ment to move it last night when i saw it, but i left it to got for a fag and when i got back it had gone past midnight and the site wasnt responding
- jayrs
- Elite Post Master
- Posts: 31520
- Joined: Mon Apr 19, 2004 10:32 pm
- Location: I.O.W
- Your car: FRST, XR2, ST170, ST225
Car: 1991 Ford Fiesta RS Turbo
Re: How to make: Camber Adjustable Lower Arms.
Is there going to be sufficient pressure on the nuts and bolts to prevent slippage if you encounter a pothole or similar ? I'd be inclined to suggest that, once the camber is set appropriately that two or three spot welds on each nut head would be a good idea.
Nothing to see here...
- andymac
- Elite Pie Master
- Posts: 11056
- Joined: Mon Jun 11, 2001 1:00 am
- Your car: Your car: Your car: Your car:
Re: How to make: Camber Adjustable Lower Arms.
I think it'll be fine once it's all torqued up to a suitable level.
I will however mark up all parts with paint so its easily visable to see if it has slipped at all. Along with that, I will be checking it all at least once a week visually to ensure it hasn't moved and is safe.
Ian Howell's lower arms are made in a similar way, one difference is he enlarged the opposite holes to what I have done, plus he has taken off some of the 'lip' on the front, and another difference I see is that he uses self locking nuts.
Pictures from RS Rob.
I will however mark up all parts with paint so its easily visable to see if it has slipped at all. Along with that, I will be checking it all at least once a week visually to ensure it hasn't moved and is safe.
Ian Howell's lower arms are made in a similar way, one difference is he enlarged the opposite holes to what I have done, plus he has taken off some of the 'lip' on the front, and another difference I see is that he uses self locking nuts.
Pictures from RS Rob.
- - Danny Boy -
- Elite Post Master
- Posts: 3844
- Joined: Mon Sep 10, 2007 5:49 pm
- Location: Portsmouth
- Your car: Fiesta Si 2.0
Re: How to make: Camber Adjustable Lower Arms.
You coudl look at aerotight nuts rather than nylocks - they're entirely stainless so the locking mechanism won't wear in the same way.
Nothing to see here...
- andymac
- Elite Pie Master
- Posts: 11056
- Joined: Mon Jun 11, 2001 1:00 am
- Your car: Your car: Your car: Your car:
Re: How to make: Camber Adjustable Lower Arms.
I have a doubt:
It doesn't move/slip when you start a corner?
It doesn't move/slip when you start a corner?
- Evolution-VII
- Newbie Poster
- Posts: 26
- Joined: Thu Dec 29, 2011 5:06 pm
- Your car: Fiesta Mk3 2.0
Re: How to make: Camber Adjustable Lower Arms.
So far I am yet to experience them move. I've had them installed since July now and I do a lot of hard driving and they have been used on all sorts of roads and they are still in exactly the same place when I installed them. The nuts & bolts are still very tight too.
- - Danny Boy -
- Elite Post Master
- Posts: 3844
- Joined: Mon Sep 10, 2007 5:49 pm
- Location: Portsmouth
- Your car: Fiesta Si 2.0
Re: How to make: Camber Adjustable Lower Arms.
Do you think this would work with the old style 2 rivet versions?? Probably just be the same but obviously only one hole at the front??
Cheers
Cheers
- Gus!!
- Post Master
- Posts: 872
- Joined: Mon Mar 26, 2012 9:53 pm
- Location: Near Southampton!!
- Your car: Mk3 Fiesta ghia 1.1!!
Re: How to make: Camber Adjustable Lower Arms.
Yeah it would work with 2 hole fixing one
- jayrs
- Elite Post Master
- Posts: 31520
- Joined: Mon Apr 19, 2004 10:32 pm
- Location: I.O.W
- Your car: FRST, XR2, ST170, ST225
Car: 1991 Ford Fiesta RS Turbo
Re: How to make: Camber Adjustable Lower Arms.
Guys, I would advise fitting spring washers.
[img]http://www.stainlessautomotivefastenings.co.uk/images/DIN7980.jpg[/img]
[img]http://www.stainlessautomotivefastenings.co.uk/images/DIN7980.jpg[/img]
- Excursion
- Bulletin Board User
- Posts: 15265
- Joined: Thu Jan 01, 1970 1:00 am
- Location: Skynet
- Your car: Ford Fiesta
Car: 1990 Ford Fiesta XR2i
Re: How to make: Camber Adjustable Lower Arms.
I've always been told spring washers for plain nut and plain washers for nylocs??
- Gus!!
- Post Master
- Posts: 872
- Joined: Mon Mar 26, 2012 9:53 pm
- Location: Near Southampton!!
- Your car: Mk3 Fiesta ghia 1.1!!
Re: How to make: Camber Adjustable Lower Arms.
[quote="Gus!!"]I've always been told spring washers for plain nut and plain washers for nylocs??[/quote]
Presumably whoever said that was coming from a cost reduction angle?
Presumably whoever said that was coming from a cost reduction angle?
- Excursion
- Bulletin Board User
- Posts: 15265
- Joined: Thu Jan 01, 1970 1:00 am
- Location: Skynet
- Your car: Ford Fiesta
Car: 1990 Ford Fiesta XR2i
Re: How to make: Camber Adjustable Lower Arms.
I guess it wouldn't hurt to have both, it was when I had an apprenticeship I was told that!! A lot of times nylocs would've just been a nuisance when a nut needed to be spun off quickly so they weren't used!!
- Gus!!
- Post Master
- Posts: 872
- Joined: Mon Mar 26, 2012 9:53 pm
- Location: Near Southampton!!
- Your car: Mk3 Fiesta ghia 1.1!!
Re: How to make: Camber Adjustable Lower Arms.
Nordlock washers are the best option out there
But thats just me
But thats just me
- freak power
- Elite Post Master
- Posts: 1748
- Joined: Tue Jan 08, 2002 12:00 am
- Location: Leeds
Re: How to make: Camber Adjustable Lower Arms.
[quote="freak power"]Nordlock washers are the best option out there
But thats just me[/quote]
I think you're right. They are what Audi supply with their adjustable ball joints, and they also state the bolts, nuts, and washers must be renewed for each adjustment.
But thats just me[/quote]
I think you're right. They are what Audi supply with their adjustable ball joints, and they also state the bolts, nuts, and washers must be renewed for each adjustment.
- Excursion
- Bulletin Board User
- Posts: 15265
- Joined: Thu Jan 01, 1970 1:00 am
- Location: Skynet
- Your car: Ford Fiesta
Car: 1990 Ford Fiesta XR2i
